Features
- Fundamental Parameters: The hydraulic foot pump has a maximum working pressure of 10,000 PSI, which can be used for all 10-ton applications. Output oil hole: 3/8NPTF connection; Intake: 1/4NPT connection; Oil Output Pressure: 70mpa; Pressure Range: 0.7-1MPa.

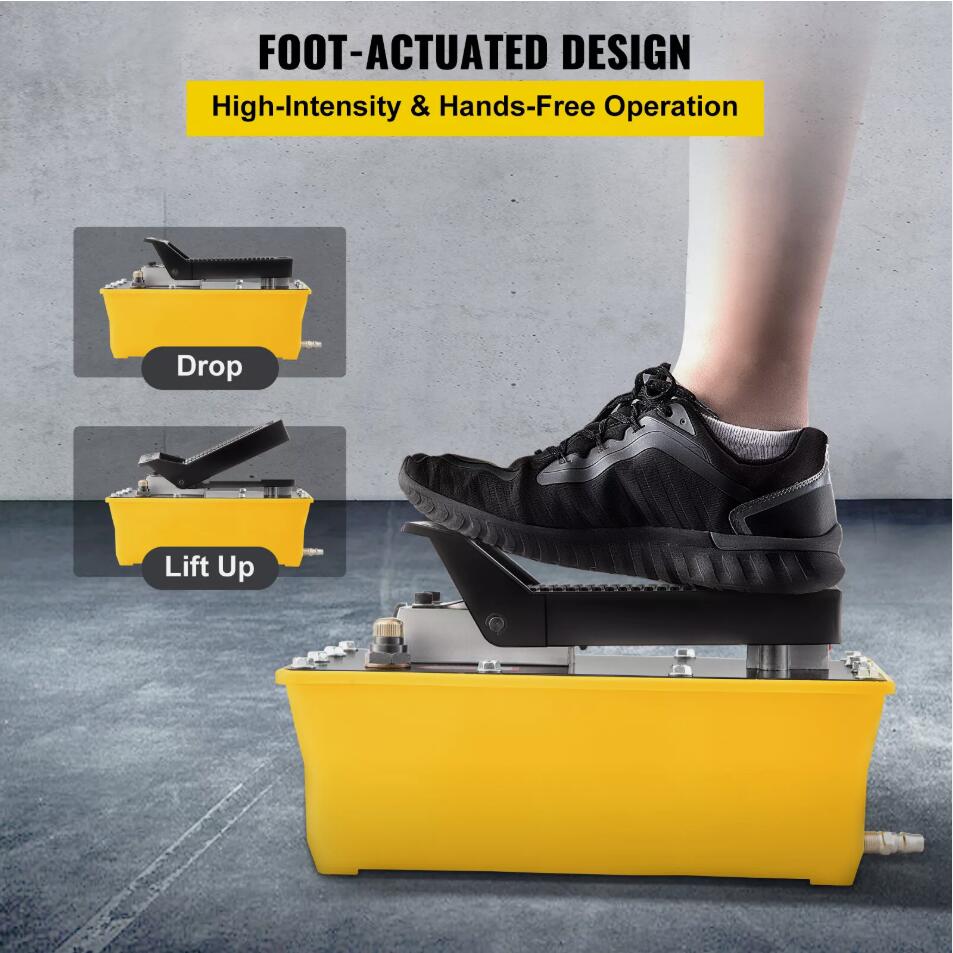

- Foot-Actuated Design: The air hydraulic pump adopts a user-friendly foot-actuated design to provide hands-free operation for pumping and releasing the load, which is able to save the operator's time and effort with strong power and high output pressure.

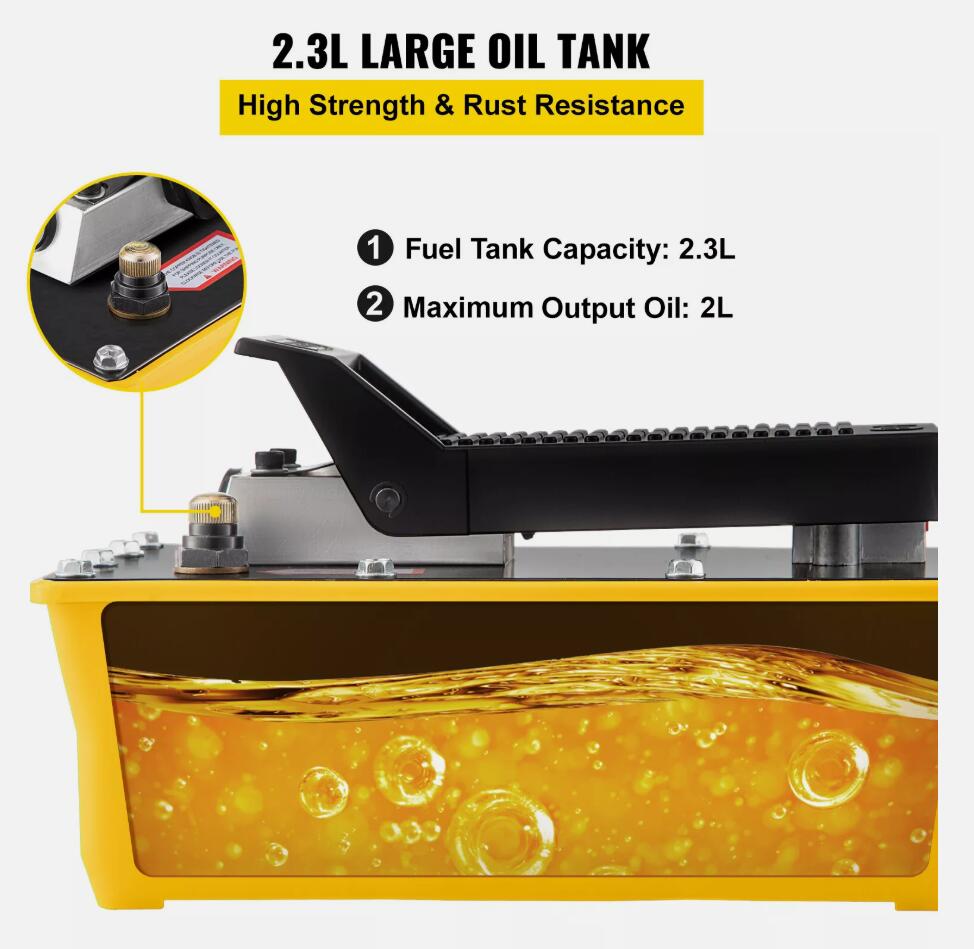

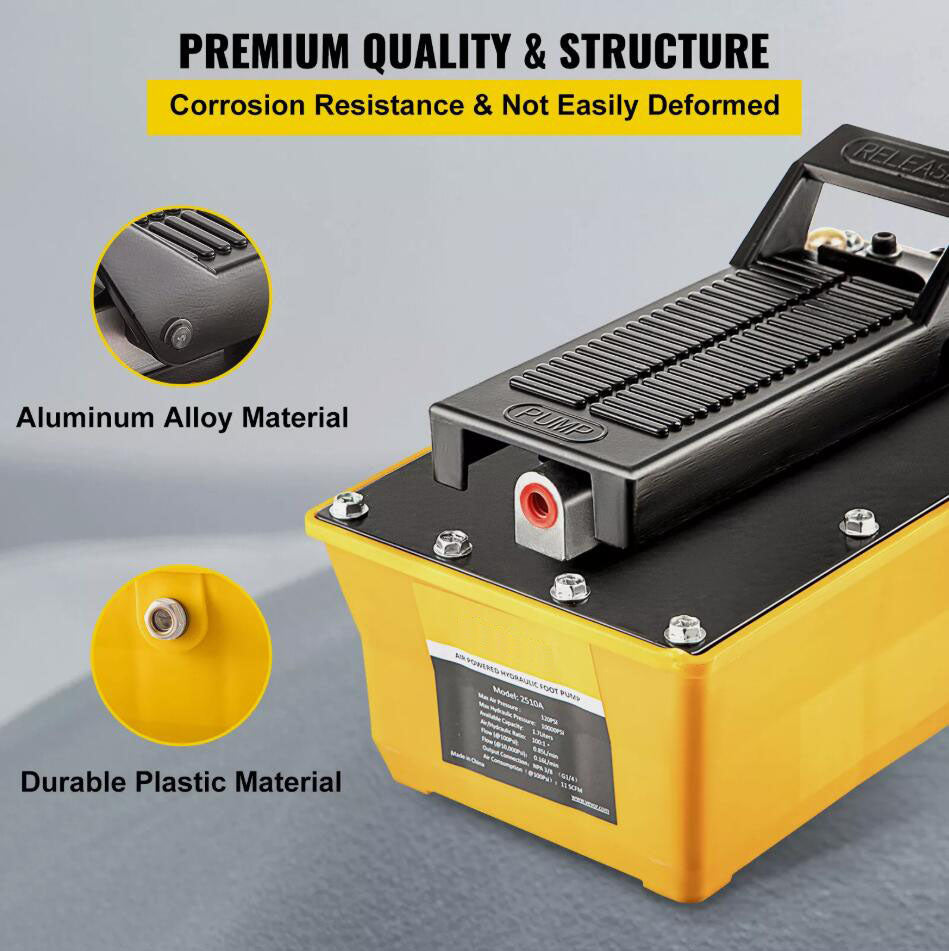

- Sturdy & Compact Construction: This air hydraulic foot pump features an aviation aluminum pump core and a high-quality plastic shell to handle tough industrial applications. 2.3L oil tank has a larger capacity with 2 liters maximum oil output.

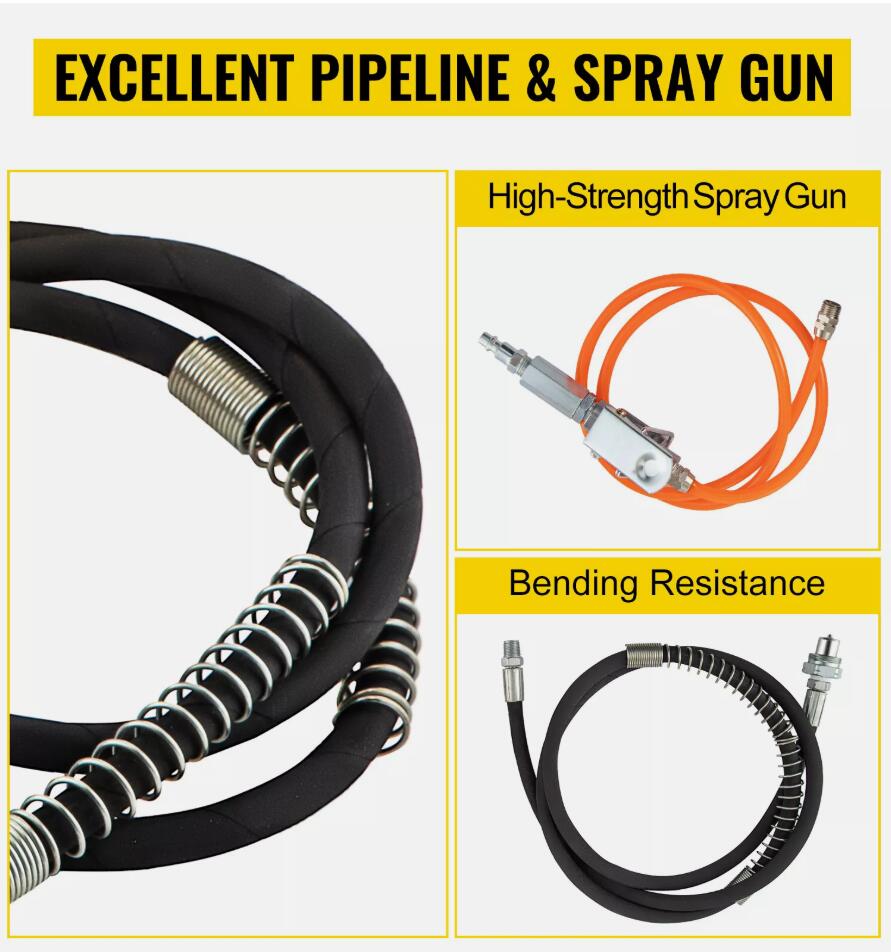

- Oil Pipe & Spray Gun Included: This hydraulic air pump is equipped with a 6.56 ft/200 cm high-pressure oil pipe that features double protection of embedded steel wires and thickened outer layer. The oil port is made of cast steel, durable and reliable. A spray gun is included.

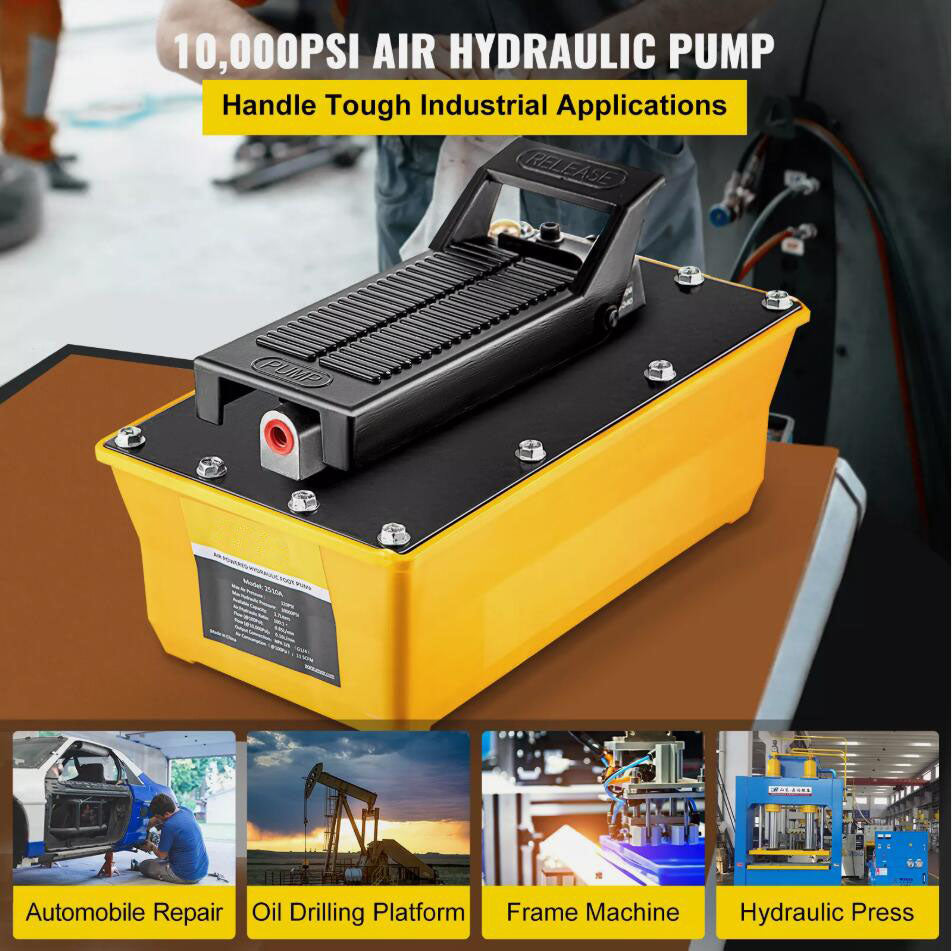

- 10,000 PSI for Wide Application: This hydraulic pump is designed to be used with single-acting cylinders only, efficiently operates many industrial and construction single-acting ram applications. It is a great unit for use with a wide variety of rams, presses, and hydraulic pullers operating at up to 10,000 PSI.
Specification
- Fuel Tank Capacity: 2.3L
- Maximum Adjustable Pressure: 10000 psi, 700 kg/square cm
- Maximum Output Oil: 2L
- Output Oil Hole: 3/8'' NPTF Connection
- Intake: 1/4'' NPT Connection
- Oil Output Pressure: 70mpa
- Flow: 0.75-0.95 liters per minute
- Flow Rate: 49.5 cu. in. with no load, 7.6 cu. in. with load
- Pressure Range: 0.7-1MPa
- Action: Single Acting
- Oil Pipe Length: 200 cm / 6.56 ft
- Spray Gun Length: 100 cm / 3.28 ft

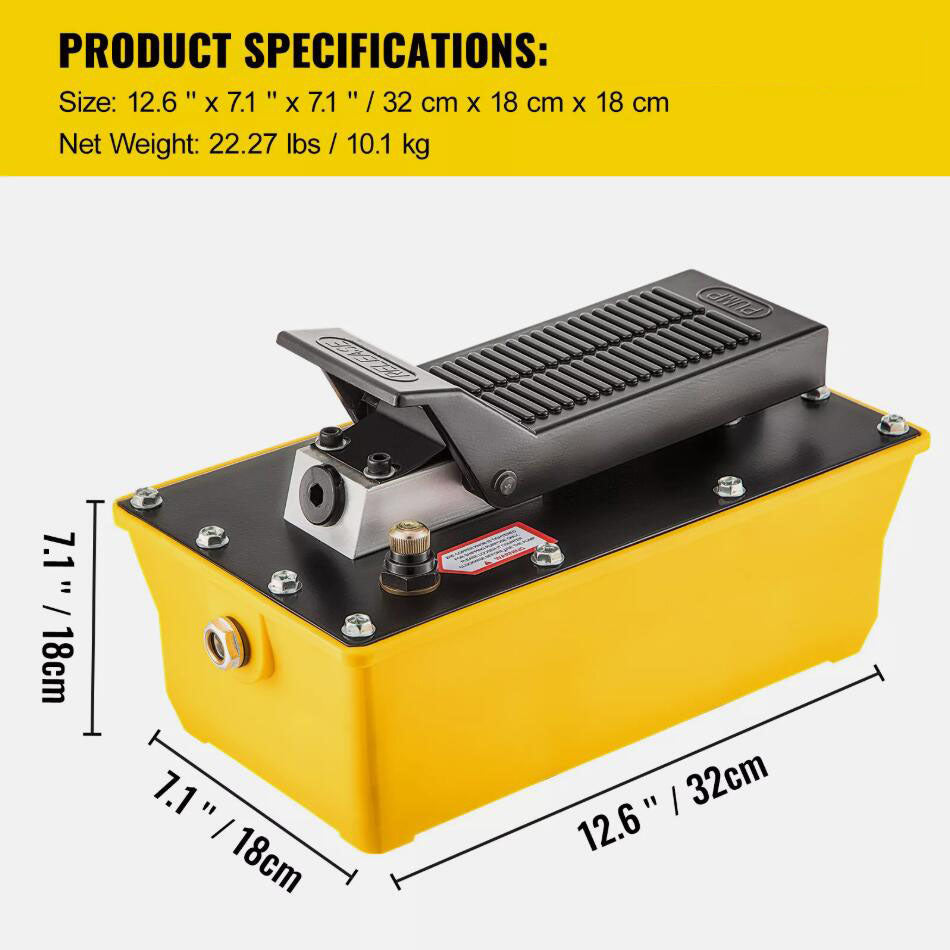

- Item Dimensions(L x W x H): 32 x 18 x 18 cm / 12.6 x 7.1 x 7.1''
- Net Weight: 10.1 kg / 22.27 lbs

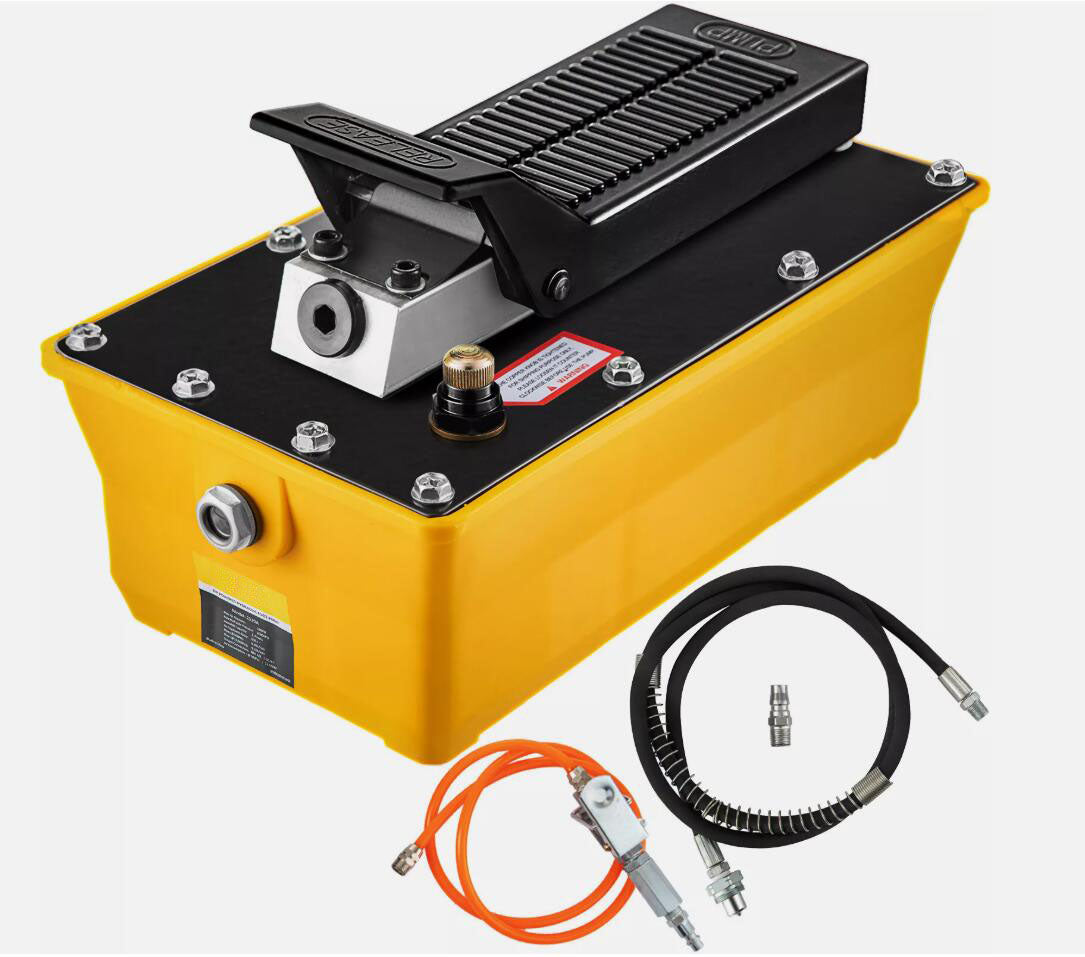

Package
- 1 x Air Hydraulic Foot Pump
- 1 x Oil Pipe
- 1 x Spray Gun
